About this item

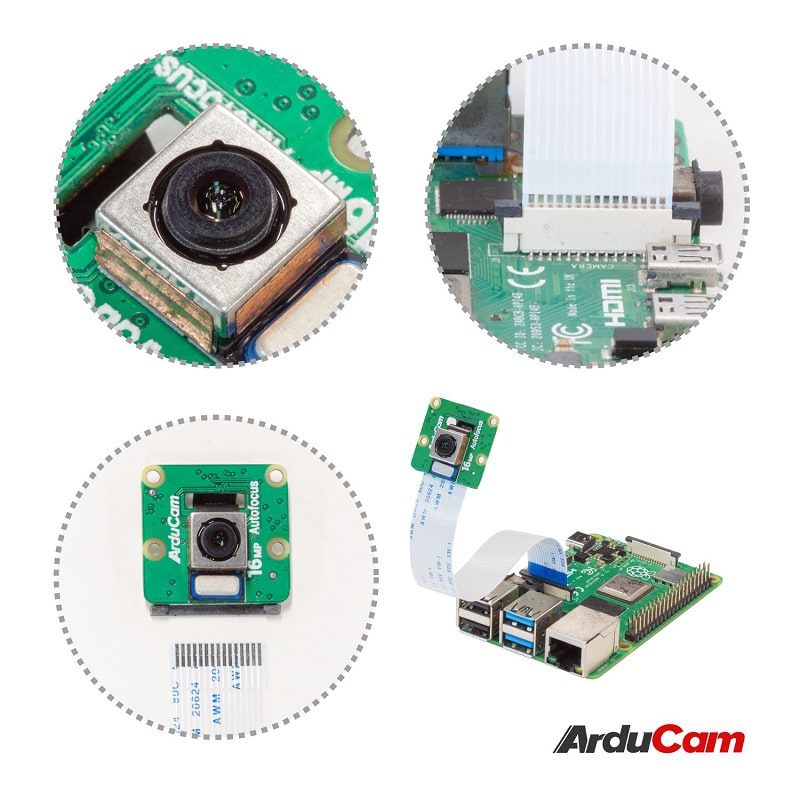

The Arducam IMX519 Autofocus Camera Module is a high-resolution imaging solution designed for Raspberry Pi and NVIDIA Jetson platforms, including Jetson Nano, Xavier NX, and Orin series. Equipped with the Sony IMX519 sensor, this module offers 16MP still image resolution (4656×3496 pixels), enabling detailed captures suitable for tasks like machine vision, robotics, and AI-driven applications. The camera supports multiple frame rates and resolutions, including 4K at 10fps, 1080p at 21fps, and 720p at 120fps, providing versatility for various use cases. It features both Phase Detection Autofocus (PDAF) and Contrast Detection Autofocus (CDAF), ensuring fast and accurate focusing, even in dynamic environments. Designed for seamless integration, the module operates via the MIPI CSI-2 interface, ensuring high-speed data transfer and compatibility with Jetson platforms. Its compact size and low power consumption make it ideal for embedded systems and battery-powered devices. Whether you're developing AI-driven applications, building a high-resolution surveillance system, or exploring advanced imaging techniques, the Arducam IMX519 Autofocus Camera Module provides the performance and flexibility needed for demanding projects.
