DFRobot Fermion: SHTC3 Humidity & Temperature Sensor
Brand: Dfrobot
Features
Special Price
₹650
₹1,293
50% Off
(Inclusive of all taxes)
All orders placed before cut-off time will be dispatched same day.
For B2B orders, contact us on davesh.sharma@jiwebtech.com /
Stock: Outofstock
About this item

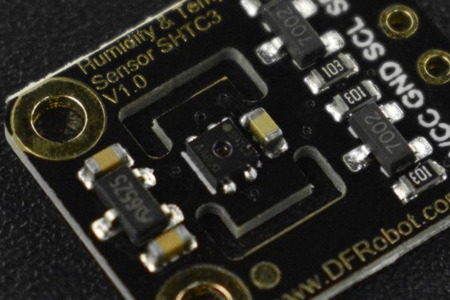

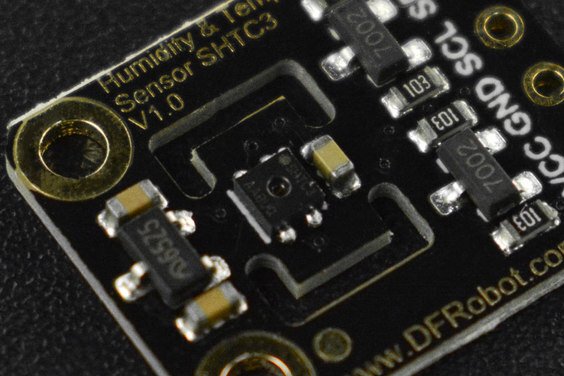

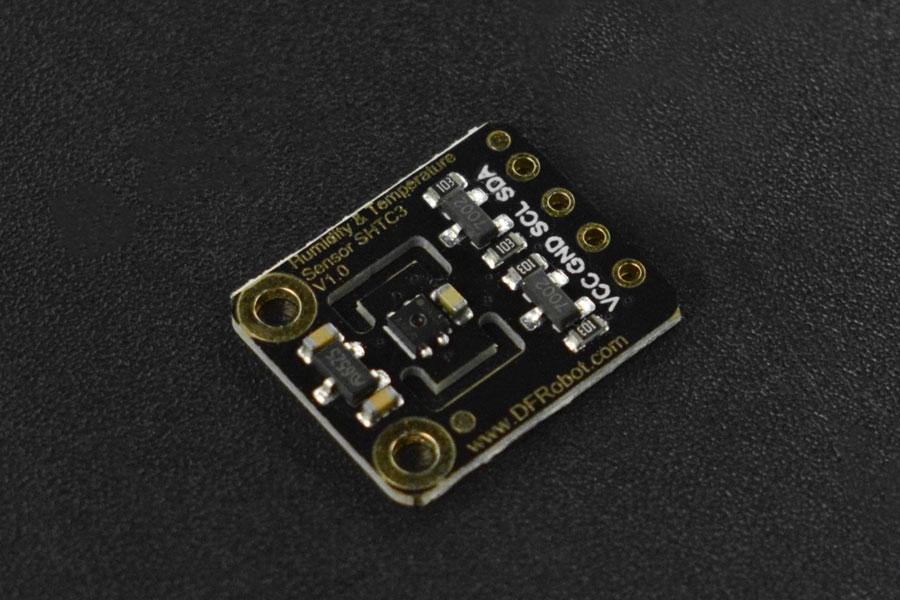

The DFRobot Fermion: SHTC3 Humidity & Temperature Sensor is a compact, low-power, high-accuracy digital sensor designed for applications requiring precise environmental monitoring. Based on Sensirion’s SHTC3 chip, this sensor delivers reliable relative humidity and temperature measurements via an I2C interface, making it easy to integrate into a variety of microcontroller platforms including Arduino, ESP32, and Raspberry Pi. With its ultra-low power consumption, the SHTC3 is ideal for battery-powered and mobile applications such as wearable devices, weather stations, indoor air quality systems, and IoT sensor nodes. It features factory calibration, ensuring accurate results right out of the box, with no need for additional tuning. The sensor offers fast response times, a wide operating range, and exceptional long-term stability. Packaged on a compact breakout board, it uses the standard Gravity interface, making it easy to connect and prototype without soldering. Thanks to its excellent performance in a small footprint, the Fermion SHTC3 is an excellent choice for developers needing reliable, low-power environmental sensing in their embedded projects.Specifications
| Humidity Range | 0% to 100% RH |
|---|---|
| Humidity Accuracy | ±2% RH (typical) |
| Temperature Range | -40°C to +125°C |
| Temperature Accuracy | ±0.2°C (typical) |
| Interface | I2C (default address: 0x70) |
| Operating Voltage | 1.62V to 3.6V |
| Power Consumption | Ultra-low (nanoamp standby current) |
| Dimensions | Compact breakout, ~15mm x 10mm |
