About this item

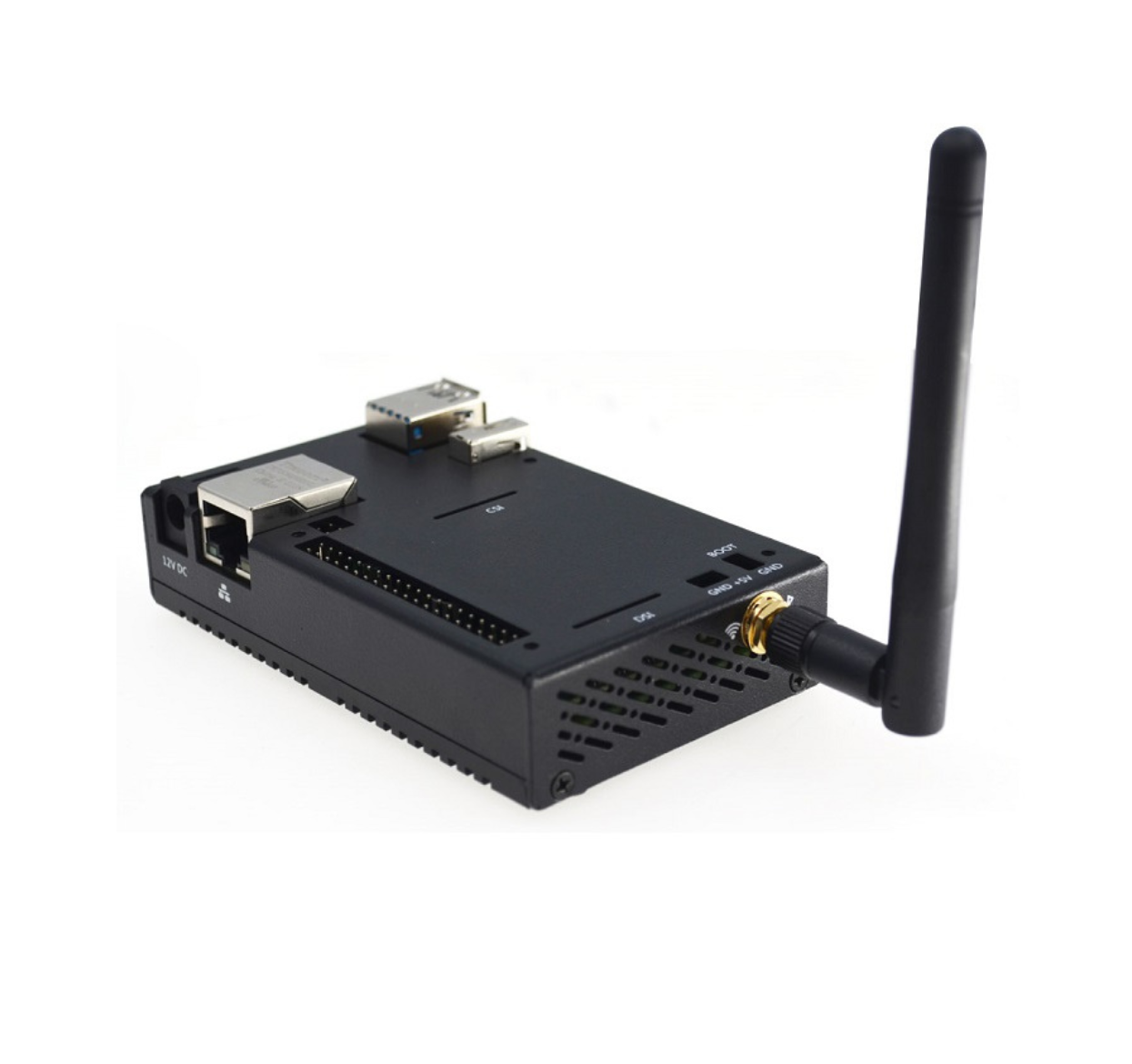

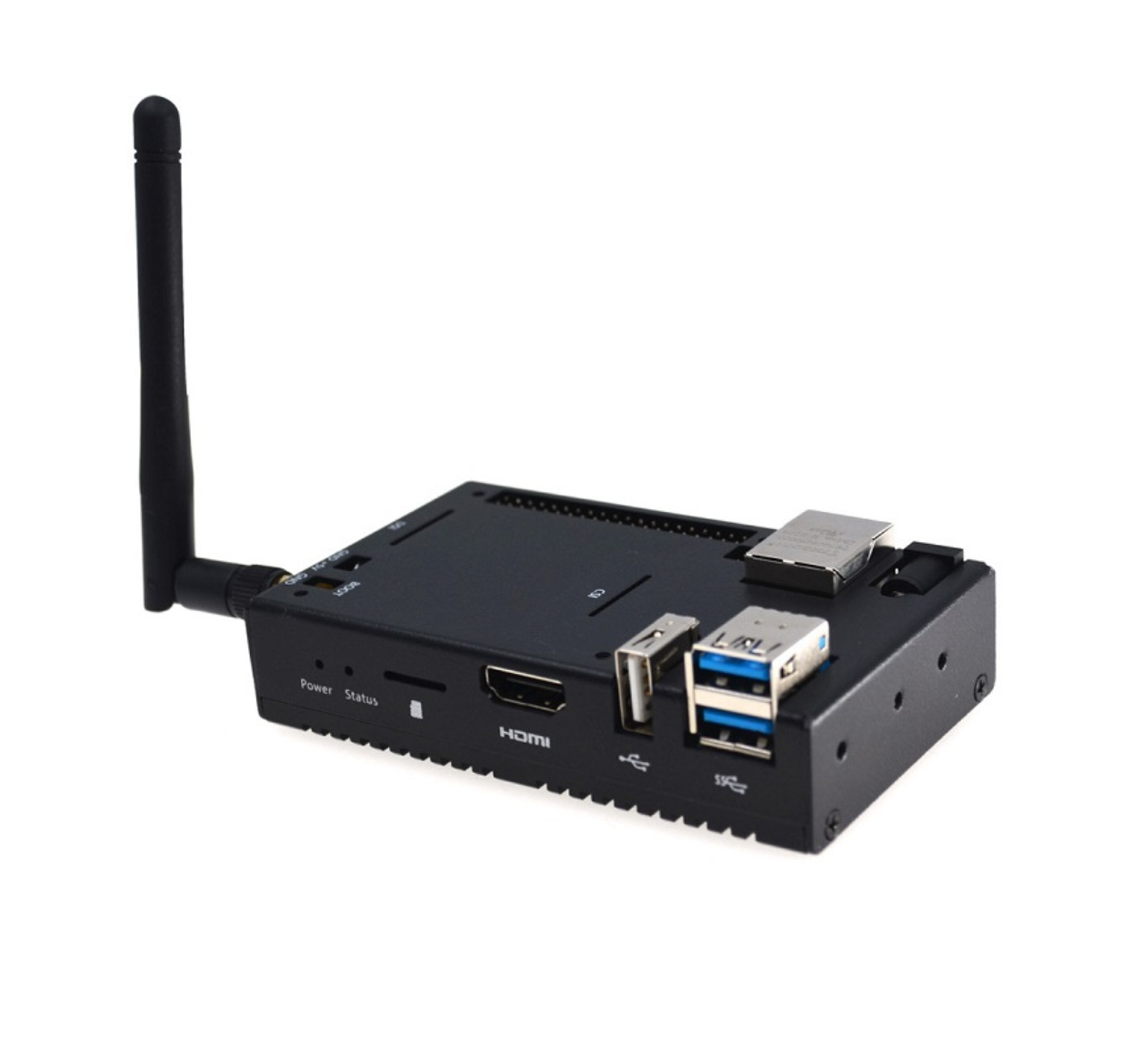

The EDATEC CM4NANO Baseboard with CM4108008 is a compact, industrial-grade embedded computing solution based on the Raspberry Pi Compute Module 4 (CM4). It features 8GB LPDDR4-3200 SDRAM and 8GB eMMC storage, offering robust performance for a variety of applications. The system is powered by a Broadcom BCM2711 quad-core Cortex-A72 processor running at 1.5GHz, capable of handling demanding tasks efficiently. It supports dual-band 2.4GHz/5.8GHz Wi-Fi and Bluetooth 5.0, ensuring reliable wireless connectivity. The baseboard includes a metal enclosure with a 103×62×5 mm heatsink, providing excellent thermal management to maintain optimal performance in high-temperature environments. It operates reliably within a temperature range of -25°C to 60°C. The system offers versatile connectivity options, including a Gigabit Ethernet port with Power over Ethernet (PoE) support, two USB 3.0 ports, and a USB 2.0 port. It also features a standard 40-pin GPIO header for expansion and a USB Type-C port for high-speed peripherals. The baseboard is equipped with a real-time clock (RTC) with a backup battery, a buzzer, and a system reset button. It supports a 12V–18V DC power input and offers DIN rail and wall-mount installation options, making it suitable for industrial automation, IoT applications, and edge computing scenarios.
