About this item

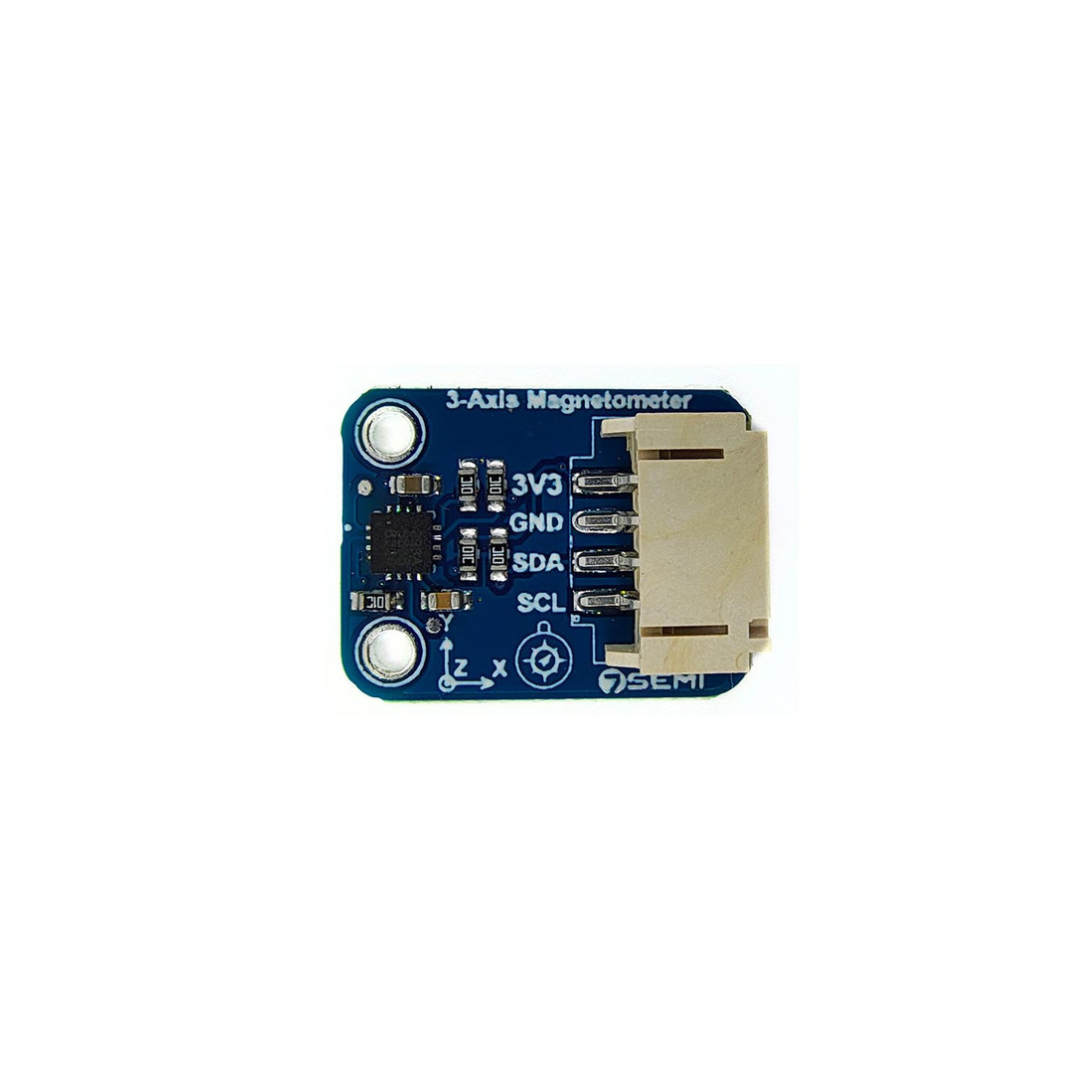

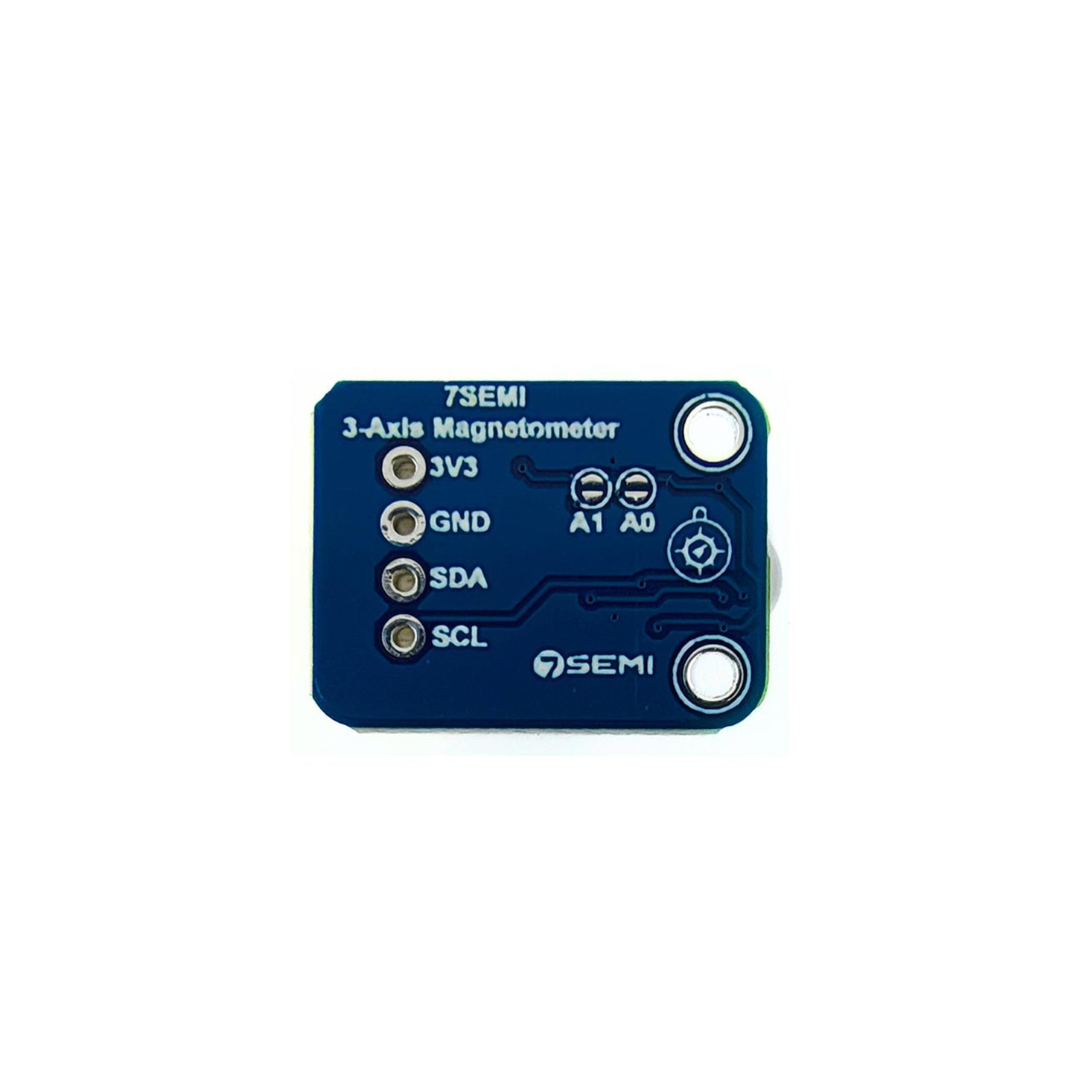

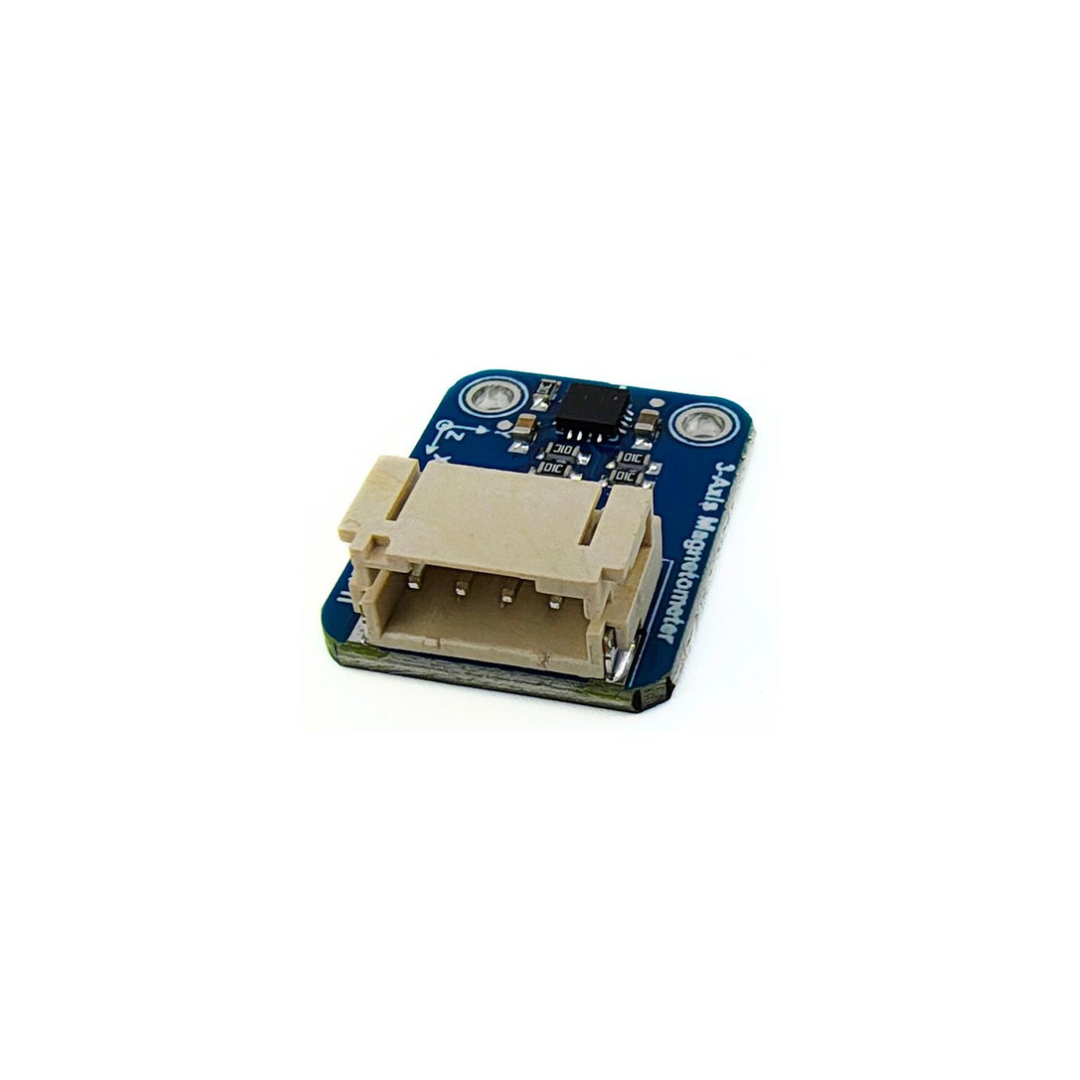

The 7Semi MLX90393 Tri-Axis Micropower Magnetometer Breakout is a compact and energy-efficient sensor module designed for precise magnetic field sensing across three axes. Utilizing the Melexis Triaxis® technology, it offers high-resolution measurements with a sensitivity of 0.161 µT and a maximum full-scale range of 44,000 µT. The sensor operates within a voltage range of 3.3V and communicates via I²C, making it compatible with various microcontrollers. Its low power consumption, averaging 100 µA, and programmable duty cycles from 0.1% to 100% allow for customization based on application needs. This breakout board is ideal for applications such as magnetic field mapping, compass systems, and non-contact position sensing.
