About this item

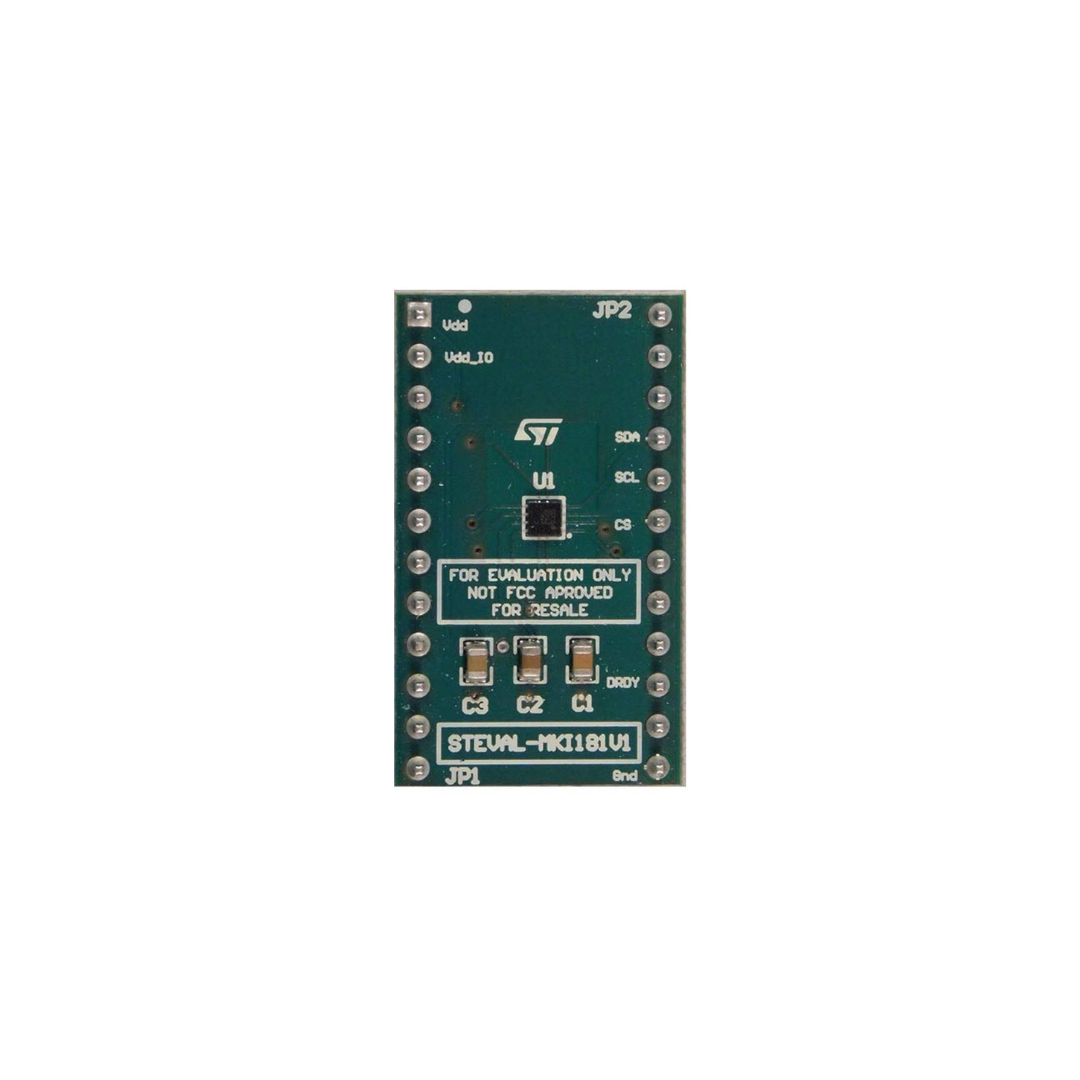

The LIS2MDL Adapter Board (STEVAL-MKI181V1) is an evaluation module designed for the LIS2MDL 3-axis magnetometer. This board facilitates rapid prototyping and integration of the LIS2MDL sensor into custom applications. It features a standard DIL24 socket, allowing for easy connection to development platforms. The adapter board includes necessary decoupling capacitors on the VDD power supply line, ensuring stable operation. It supports both I²C and SPI communication interfaces, providing flexibility in system integration. With a supply voltage range of 1.71V to 3.6V, the board is suitable for low-power applications. This evaluation module is compatible with STMicroelectronics' development platforms, enabling seamless evaluation and development of magnetic sensing applications.
